Rectifier
HS1G
NEW

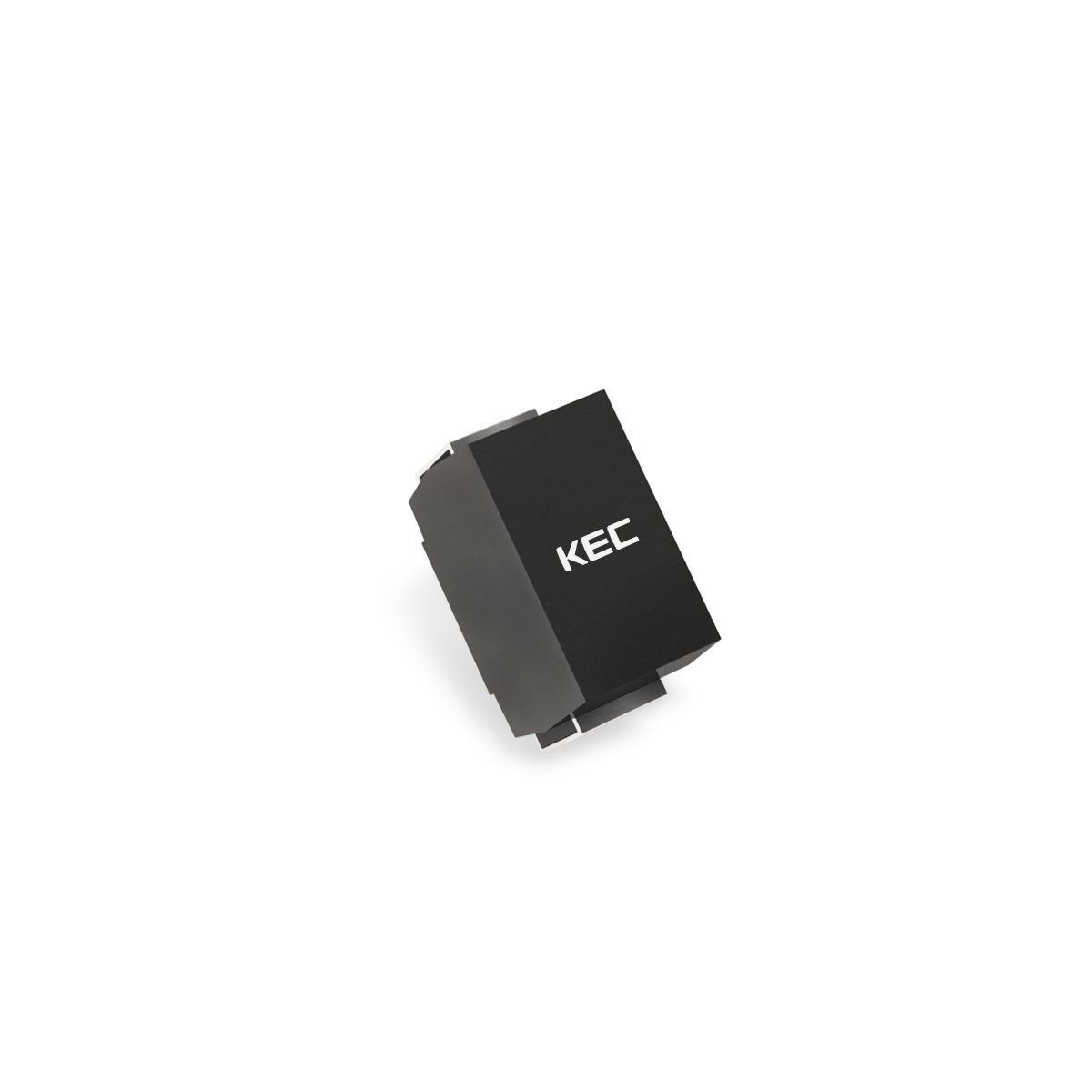

High Efficient Rectifier, SMA(1), 400V, 1A
Application
· Switching Power Supply
· DC/DC Converter
· Home Appliances, Office Equipment
· Telecommunication, Factory Automation
Features
· Glass Passivated Pellet Chip Junction
· Low Forward Voltage Drop
· Low Leakage Current
· High Forward Surge Capability
| Item No | HS1G |
|---|---|
| Status | NEW |
| AEC-Q | N |
| Package | SMA(1) |
| IO[A] | 1 |
| VFM_MAX[V] | 1.3 |
| VRRM[V] | 400 |
| trr_Max[㎱] | 50 |
