Low Voltage MOSFET
KU024N03C

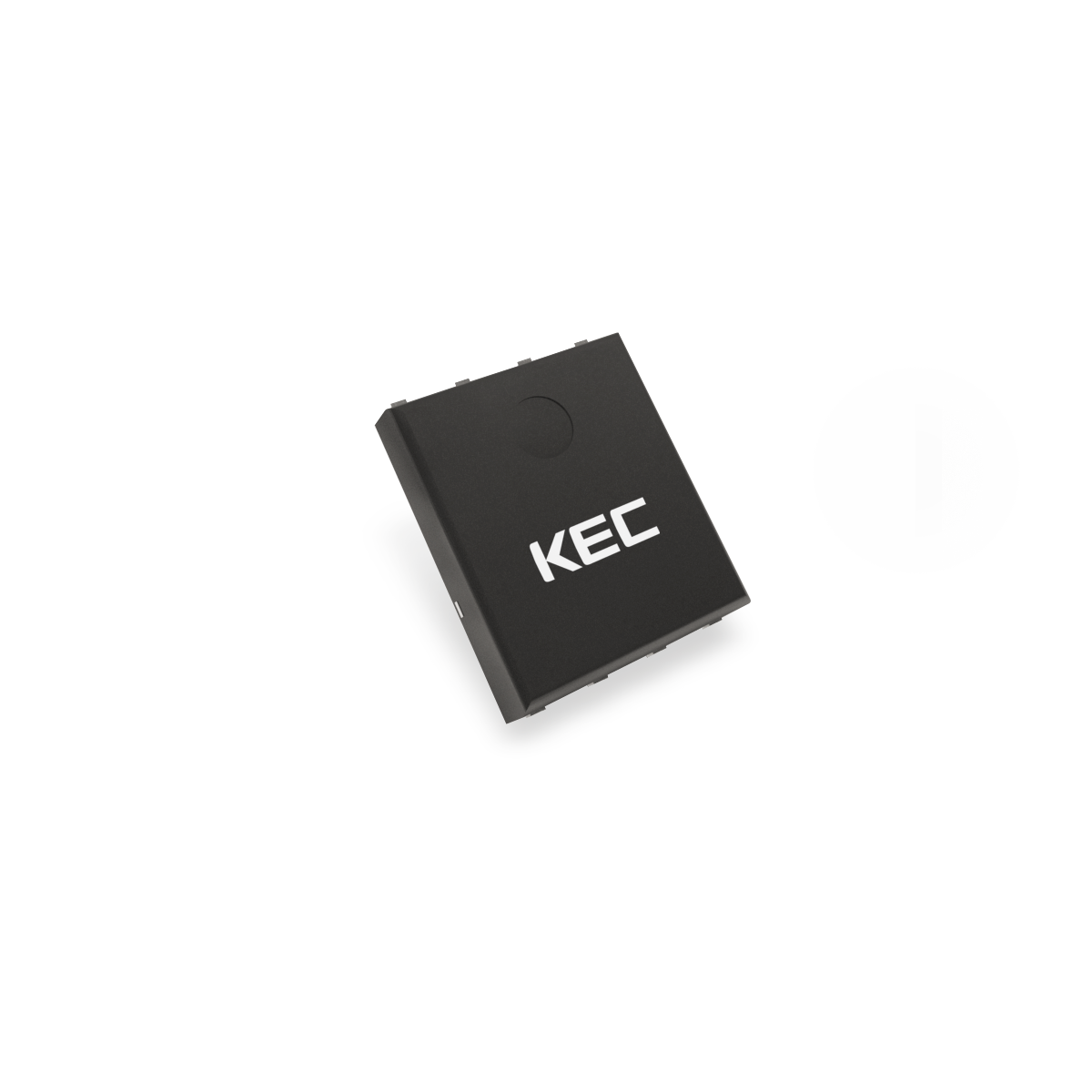

General Trench MOSFETs, PDFN56, 30V, 100A
Application
· Consumer - LCD/OLED TV and Smartphone
Features
· Fast switching time
· Low on resistance and gate charge
· Suitable for using DC/DC Converter, Synchronous Rectification and a load switch
| Item No | KU024N03C |
|---|---|
| Status | Active |
| AEC-Q | N |
| Package | PDFN56 |
| Polarity | N |
| BVDSS[V] | 30 |
| ID[A] | 100 |
| PD[W] | 40 |
| RDS(ON)@10V[Ω] | 0.0024 |
| Qg [nC] | 74 |
| Vth_MIN[V] | 1.2 |
| Vth_MAX[V] | 2.5 |
| Ciss[pF] | 4000 |
| ESD DIODE | N |
Product Datasheet
-
[Product Datasheet] KU024N03C.pdf
630.8 KBPDF
-
[Marking Information] M KU024N03C.pdf
162.2 KBPDF
-
[Package Dimension] PDFN56 PKG.pdf
57.7 KBPDF
-
[Packing Information] PDFN56 Packing.pdf
396.7 KBPDF
-
[Recommended Pad Dimension] PDFN56 RPD.pdf
50.3 KBPDF
