Low Voltage MOSFET
KUS086N10DA

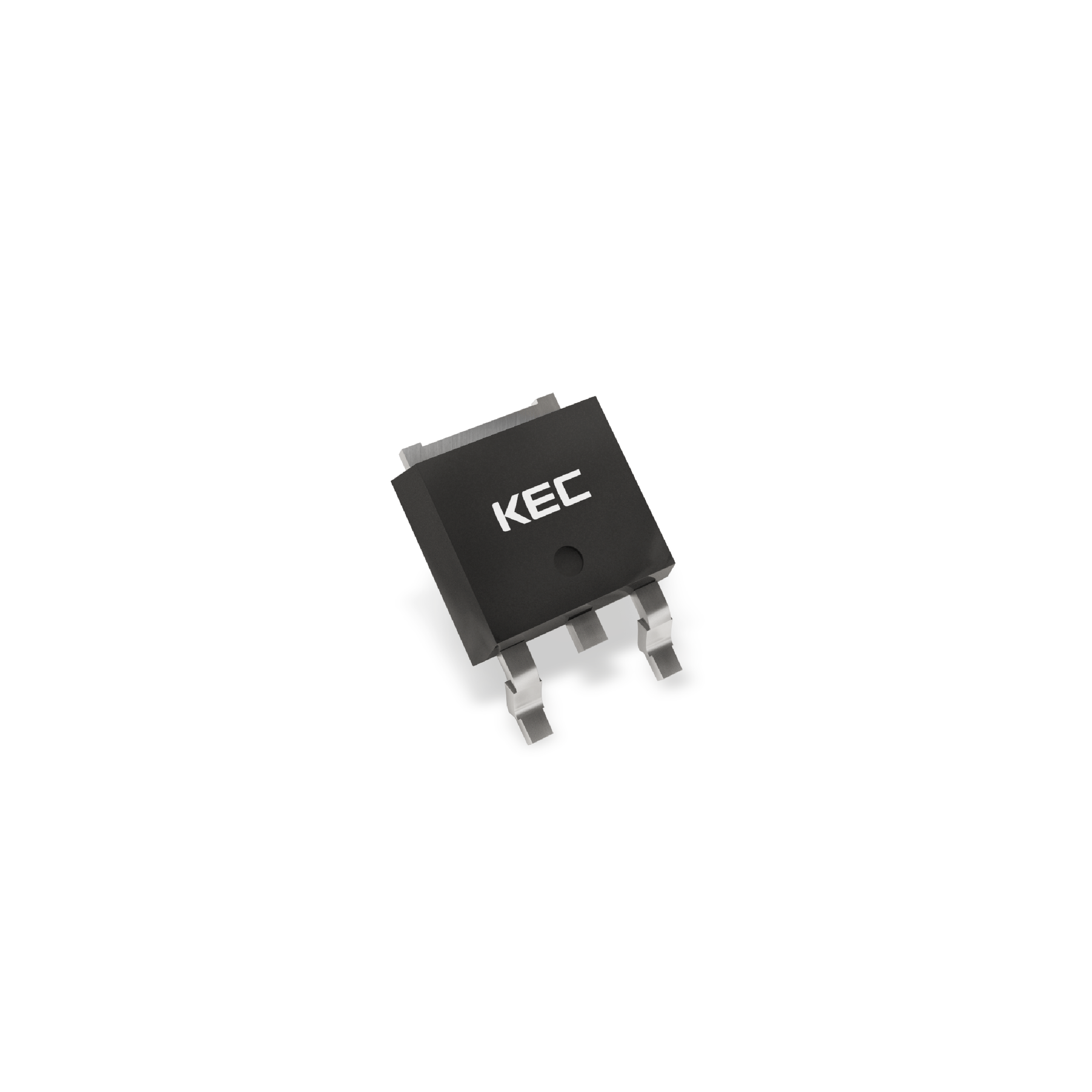

Split Gate Trench MOSFETs, DPAK(1), DPAK(3), 100V, 63A
Application
· DC/DC Converter, Synchronous Rectification and a load switch in battery powered applications
Features
· Fast switching time
· Low on resistance and gate charge
· Suitable for using DC/DC Converter, Synchronous Rectification and a load switch
| Item No | KUS086N10DA |
|---|---|
| Status | Active |
| AEC-Q | N |
| Package | DPAK(1)/DPAK(3) |
| Polarity | N |
| BVDSS[V] | 100 |
| ID[A] | 63 |
| PD[W] | 62.5 |
| RDS(ON)@10V[Ω] | 0.0086 |
| Qg [nC] | 54 |
| Vth_MIN[V] | 2 |
| Vth_MAX[V] | 4 |
| Ciss[pF] | 3440 |
| ESD DIODE | N |
