General Purpose Bipolar Transistors
KTA1695A

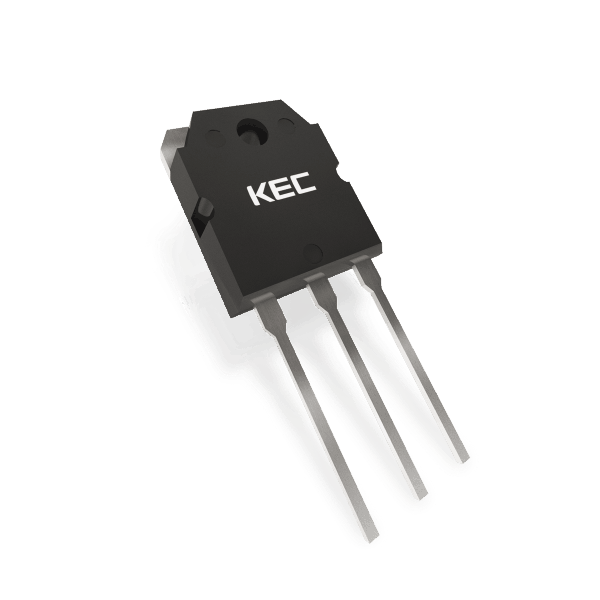

General Purpose Transistor, TO-3P(N), -140V, -10A
Application
Consumer - Home Appliance and Audio System
Features
Complementary to KTC4468A.
Recommended for 60W Audio Frequency Amplifier Output Stage.
| Item No | KTA1695A |
|---|---|
| Package | TO-3P(N) |
| Polarity | PNP |
| VCEO[V] | -140 |
| IC[A] | -10 |
| PC[W] | 100 |
| hFE_Min | 55 |
| VCE(SAT)_MAX[V] | -0.5 |
Product Datasheet
-
[Product Datasheet] KTA1695A.pdf
123.1 KBPDF
-
[Marking Information] M KTA1695A.pdf
85.3 KBPDF
-
[Package Dimension] TO-3P(N) PKG.pdf
63.7 KBPDF
Ordering Information
| Part number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | Samples | ||
|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||
| KTA1695A-O-U/P | Active | No | Yes | No | TO-3P(N) | Tube | 30 | Request Sample |
