General Purpose Bipolar Transistors
KTD2082D
Automotive QualifiedNew

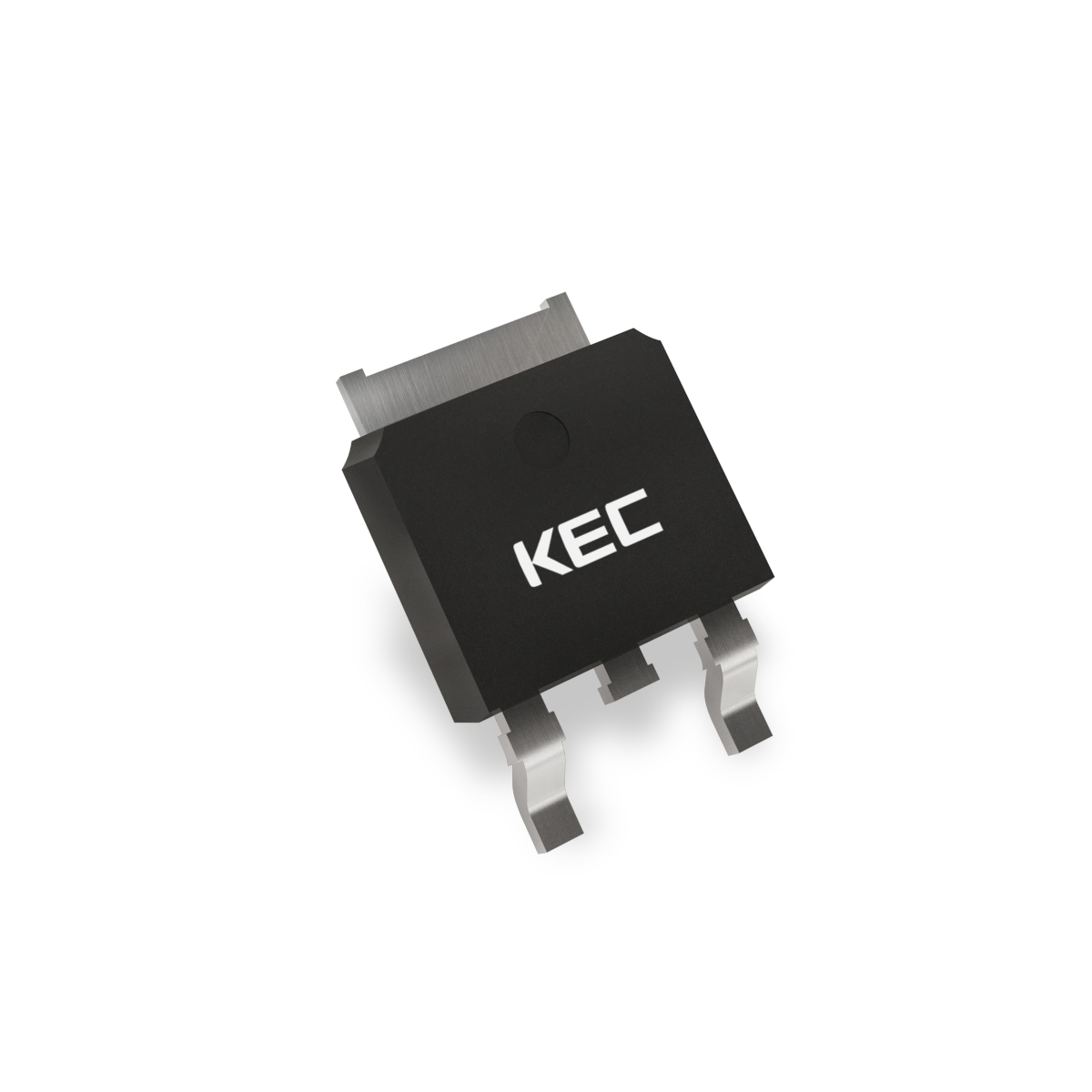

Low VCE(sat) Transistor, DPAK, 80V, 2A
Application
· GENERAL PURPOSE APPLICATION
· POWER DRIVER APPLICATION
· LOW FREQUENCY AMPLIFIER
Features
· Low Collector-Emitter Saturation Voltage
· Suitable for Power Driver
| Item No | KTD2082D |
|---|---|
| Package | DPAK(3) |
| Polarity | NPN |
| VCEO[V] | 80 |
| IC[A] | 2 |
| PC[W] | 10 |
| hFE_Min | 120 |
| hFE_Max | 390 |
| VCE(SAT)_MAX[V] | 0.3 |
Product Datasheet
-
[Product Datasheet] KTD2082D_R0.pdf
411.2 KBPDF
-
[Marking Information] M KTD2082D_R0.pdf
115.5 KBPDF
-
[Package Dimension] DPAK(3) PKG.pdf
64.3 KBPDF
-
[Packing Information] DPAK(3) Packing_R2.pdf
884.7 KBPDF
-
[Recommended Pad Dimension] DPAK(3) RPD.pdf
356 KBPDF
Ordering Information
| Part number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| KTD2082D-RTF/PQ | New | No | Yes | No | DPAK(3) | Reel | 3,000 | Yes | Yes | Request Sample |
| KTD2082D-RTF/PU | New | Yes | Yes | No | DPAK(3) | Reel | 3,000 | Yes | Yes | Request Sample |
* EU RoHS Exemption Usage
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
