General Purpose Bipolar Transistors

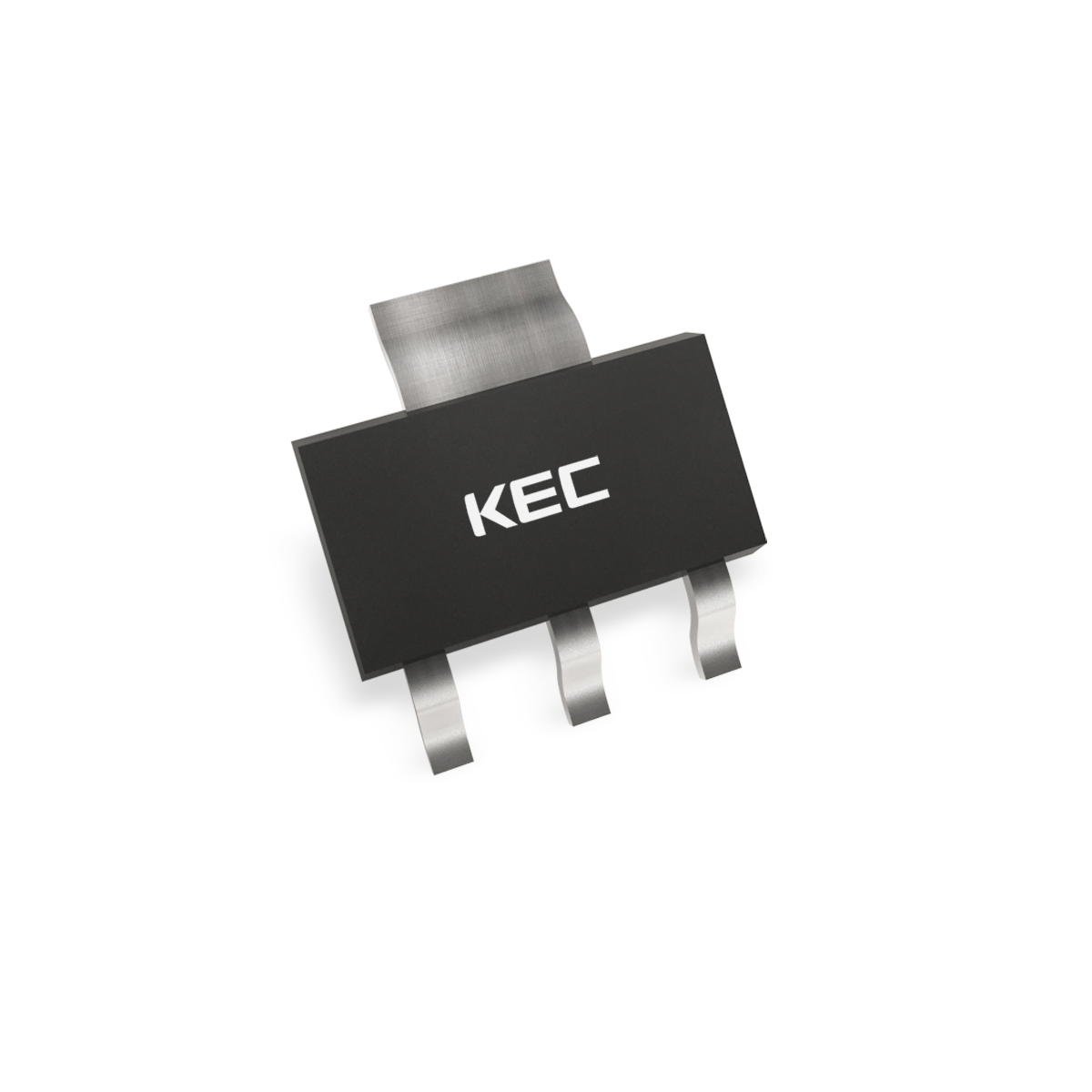

KTA1545W
New
Low VCE(sat) Transistor,SOT-223, -40V,-5A
Application
· GENERAL PURPOSE APPLICATION
· SWITCHING APPLICATION
· SUPPLY LINE SWITCHING CIRCUIT
· BATTERY MANAGEMENT APPLICATION
· DC/DC CONVERTER APPLICATION
· MOSFET DRIVER APPLICATION
Features
· Low Collector-Emitter Saturation Voltage
· High Current Capability
· Improved device reliability due to reduced heat generation
| Item No | KTA1545W |
|---|---|
| Package | SOT-223(1) |
| Polarity | PNP |
| VCEO[V] | -40 |
| IC[A] | -5 |
| PC[W] | 1.35 |
| hFE_Min | 250 |
| VCE(SAT)_MAX[V] | 0.385 |
Product Datasheet
-
[Product Datasheet] KTA1545W_R0.pdf
1.2 MBPDF
-
[Marking Information] M KTA1545W_R0.pdf
224 KBPDF
-
[Package Dimension] SOT-223(1) PKG_R0.pdf
171.8 KBPDF
-
[Packing Information] SOT-223(1) Packing_R1.pdf
613.8 KBPDF
