Rectifier
HER107G

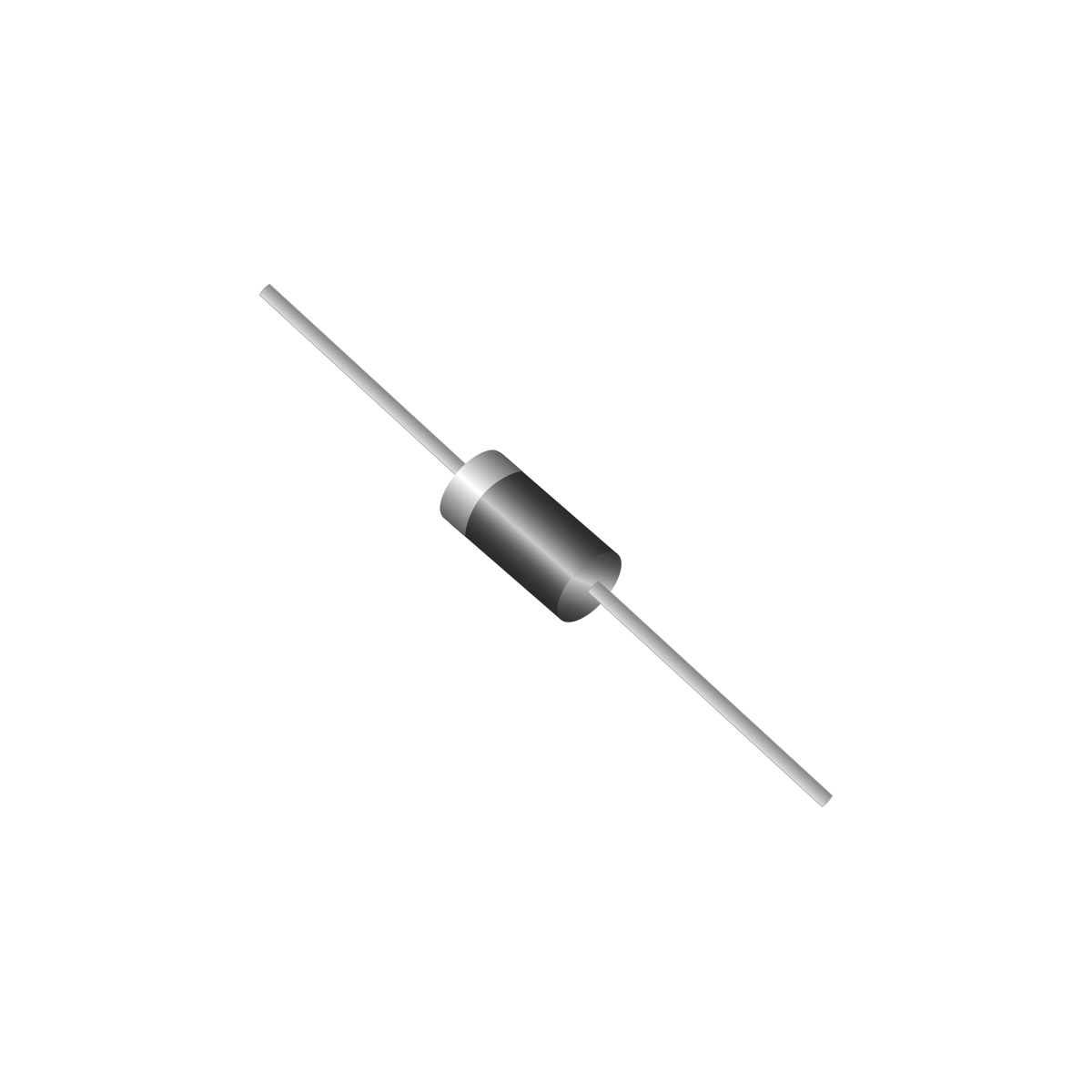

High Efficient Rectifier Diode, DO-41, 800V, 1A
Application
· Switching Power Supply
· DC/DC Converter
· Home Appliances, Office Equipment
· Telecommunication, Factory Automation
Features
· High Efficiency
· High Reliability
· Glass Passivated Chip Junction
· High forward surge capability
| Item No | HER107G |
|---|---|
| Package | DO-41 |
| IO[A] | 1 |
| VFM_MAX[V] | 1.7 |
| VRRM[V] | 800 |
| trr_Max[㎱] | 75 |
Product Datasheet
-
[Product Datasheet] HER101G-HER108G_R0.pdf
445.6 KBPDF
-
[Package Dimension] DO-41 PKG_R1.pdf
78.4 KBPDF
-
[Packing Information] DO-41 Packing_R2.pdf
894.4 KBPDF
Ordering Information
| Part number | Status | Compliance | Package | Packing Type | Packing Q’ty[pcs] | RoHS | REACH | Samples | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AEC-Q | Pb-Free | Halogen Free | ||||||||
| HER107G | - | - | - | - | - | - | - | - | - | Request Sample |
* EU RoHS Exemption Usage
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
A few of KEC products are RoHS-compliant with the use of an EU RoHS exemption for lead, specifically.
For the latest information regarding applicable RoHS exemptions and their expiration dates, please contact the Quality Team.
